2015~2022 Ford F-150 LED Headlights Bulbs Combo High Beam and Low Beam

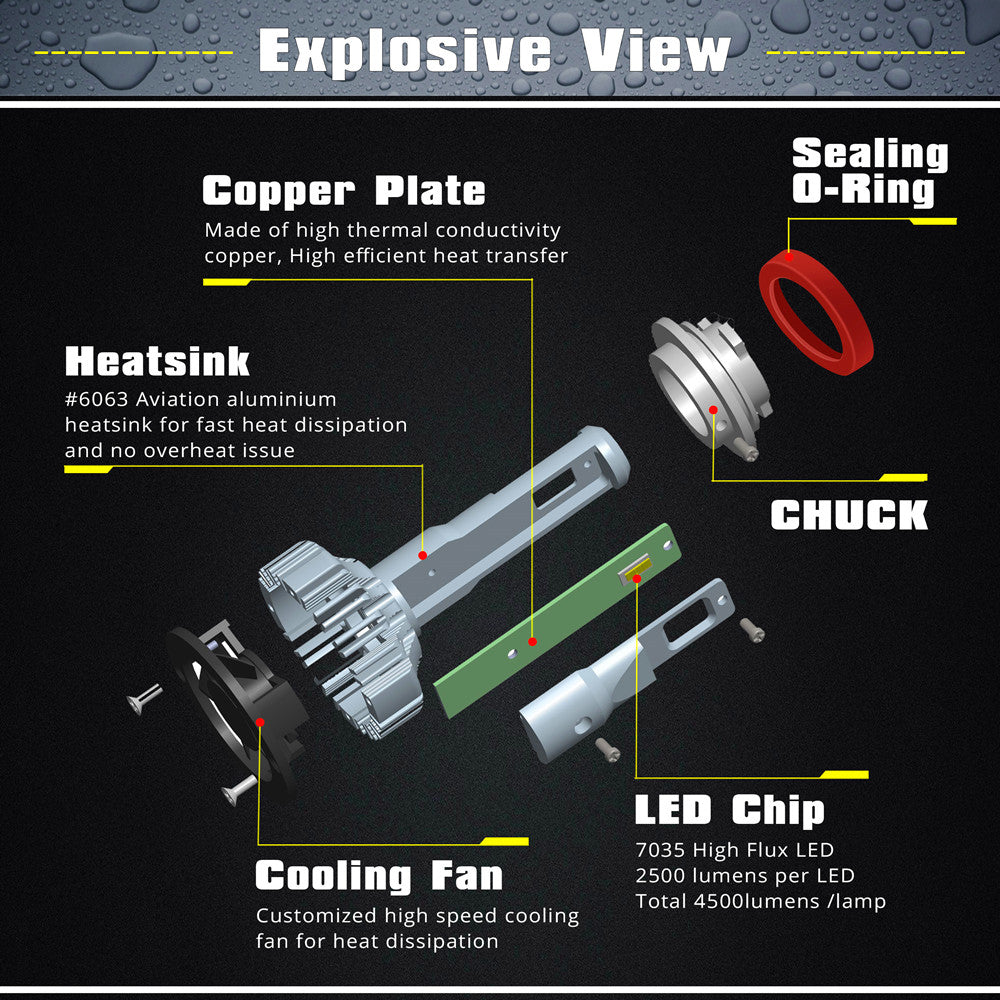

• Advanced Design, cutting-edge technologies, built with fast speed cooling fan and 6063 aviation aluminum material for better heat dissipation.

• Perfect Beam Pattern: Matches OEM halogen headlamps beam pattern, but more than 300% brighter than OEM.

• High illumination light output: More than 400% brighter than OEM halogen headlamps
• Cross Reference Number: HB3, 9005, H8, H9, H11, H8LL, H9LL, H11LL, 9005XS, 9005LL, 9005L+, ect.
• Applications: Used for upgrading 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022 OEM HID, halogen or damaged high low beam conversion kits headlamps,  daytime running lights(DRL), cornering lights, etc.
• Color temperature: 6000K~6500K Xenon White.
• LED Chip Type: Equipped with high illumination and high power 7035 SMD LED chips
• Advanced Heat Dissipation: Double high speed fan plus the latest 6063 aviation aluminum material for the best heat dissipation and much longer lifespan
• Warranty: Fully 12-months warranty on manufacturer defect
• Mini design: easy fitment and plug-n-play for most vehicles, yet due to LED bulbs draw much less power than stock lamps, extra LED resistors or decoders maybe required to avoid the flickering or error code.

 This order includes 4pcs LED bulbs: one pair(2pcs) 2015~2022 Ford F150 low beam LED headlights bulbs; and one pair high beam LED headlights bulbs

• Plug-n-play, easy installation, No need extra LED kits or decoders or resistors, direct fitment.
• Rotate the steering wheel to the opposite side of the bulb needing replacement.
• Remove two screws and one push pin from the front of the wheel liner.
• Pull the wheel liner back towards the tire to gain access to the bulbs.
• Remove the OEM halogen headlamps of high beam, low beam bulbs as below picture shown, unplug, and inset LED bulbs to the headlamp housing and plug into the socket.

A: Low Beam

B: Front Turn Signal Lights

C: High Beam

• Power on the vehicle and turn on high beam or low beam, check the bulb light up and see the beam pattern is correctly or not.

After replacing the LED headlights bulbs, and if you feel some dark spot or the beam pattern not correct, adjusting headlamps is recommended by following steps:

• Park your vehicle directly in front of a wall or screen on a level surface, approximately 25 ft (7.6 m) away.
• Measure the height from the center of your headlamp (indicated by a 3.0 millimeter circle on the lens) to the ground and mark an 8 ft (2.4 m) horizontal reference line on the vertical wall or screen at this height (a piece of masking tape works well).

Note: To see a clearer light pattern for adjusting, you may want to block the light from one headlamp while adjusting the other.

• Switch on the low beam headlamps to illuminate the wall or screen and open the hood. Cover one of the headlamps so no light hits the wall.
• On the wall or screen you will observe a light pattern with a distinct horizontal edge toward the right. If this edge is not at the horizontal reference line, you will need to adjust the beam so the edge is at the same height as the horizontal reference line.
• Locate the vertical adjuster on each headlamp. Use a #2 Phillips screwdriver to turn the adjuster either counterclockwise or clockwise in order to adjust the vertical aim of the headlamp.
• Repeat Steps 3 through 7 to adjust the other headlamp.
• Close the hood and turn off the lamps.
